An existing freestanding switchboard is anchored to an existing five-inch minimum concrete floor slab using new three-inch by four-inch by quarter-inch by eight-inch steel angles. The steel angle is welded to the base of the switchboard and finished with paint matching the switchboard color. Two half-inch diameter by six-inch epoxy anchors secure each angle into the concrete slab. Approved anchor systems include Hilti HVA, Hilti HIT, or Ramset Epcon.

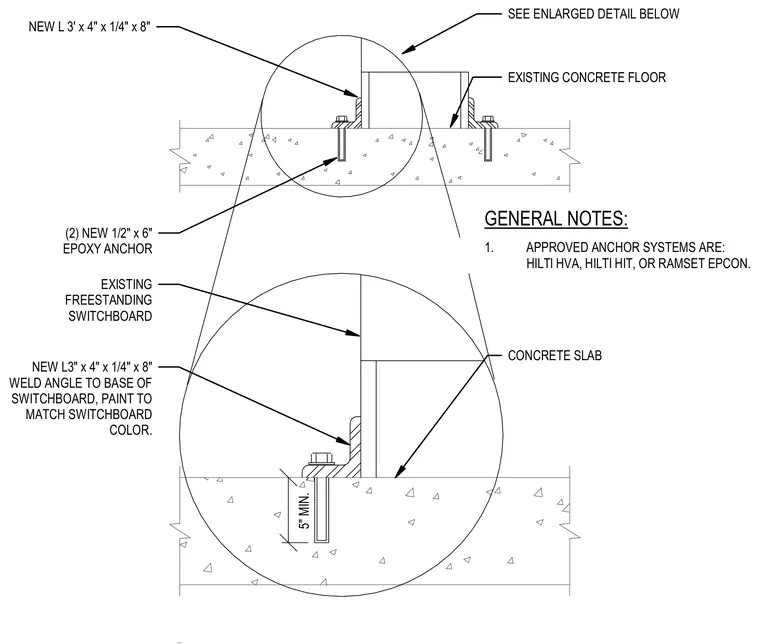

GENERAL NOTES: 1. APPROVED ANCHOR SYSTEMS ARE: HILTI HVA, HILTI HIT, OR RAMSET EPCON. SEE ENLARGED DETAIL BELOW EXISTING CONCRETE FLOOR NEW L 3' x 4" x 1/4" x 8" (2) NEW 1/2" x 6" EPOXY ANCHOR EXISTING FREESTANDING SWITCHBOARD NEW L3" x 4" x 1/4" x 8" WELD ANGLE TO BASE OF SWITCHBOARD, PAINT TO MATCH SWITCHBOARD COLOR. CONCRETE SLAB 5" MIN.
