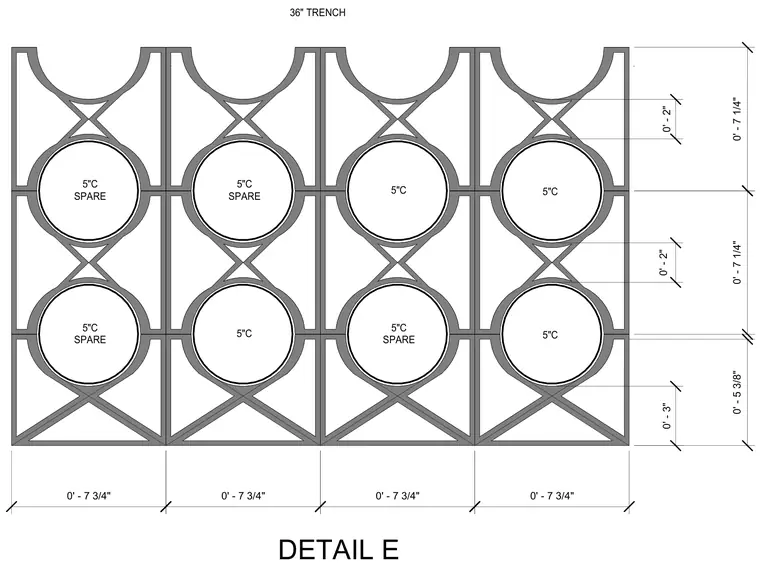

A multi-tier conduit spacer arrangement organizes eight five-inch conduits and spare lines within a thirty-six-inch trench. The vertical stacking dimensions measure zero feet five and three-eighths inches from the bottom base, with intermediate tier heights spaced at zero feet two inches and zero feet seven and one-quarter inches. Horizontal bay widths measure zero feet seven and three-quarters inches on center between vertical supports.
0' - 7 3/4" 0' - 3" 0' - 2" 0' - 7 1/4" 0' - 7 1/4" 0' - 2" 0' - 5 3/8" 0' - 7 3/4" 0' - 7 3/4" 0' - 7 3/4" DETAIL E 5"C SPARE 5"C 5"C 5"C SPARE 5"C SPARE 5"C 5"C 5"C SPARE 36" TRENCH
