Generator Transfer Device 0-10V Dimming Wiring Diagram

Elements

About this detail

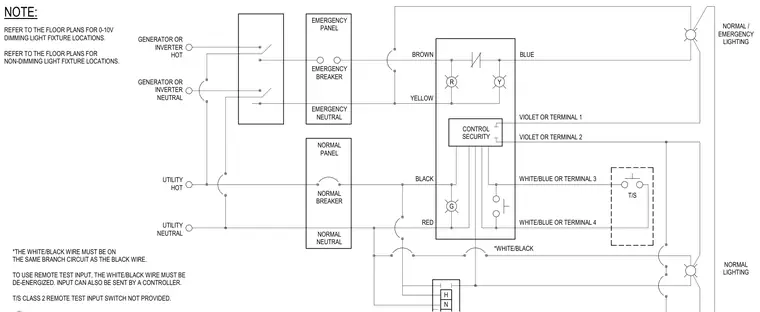

This electrical schematic details the wiring connections for a generator transfer device with 0-10V dimming capabilities. The system integrates utility hot and neutral feeds with generator or inverter backup power sources through normal and emergency breakers and panels. Control and security wiring manage dimming signals via violet leads or designated terminals, alongside a class 2 remote test input switch. Specific wire colors including brown, yellow, black, red, blue, and white/black are routed to coordinate normal and emergency lighting circuits.
