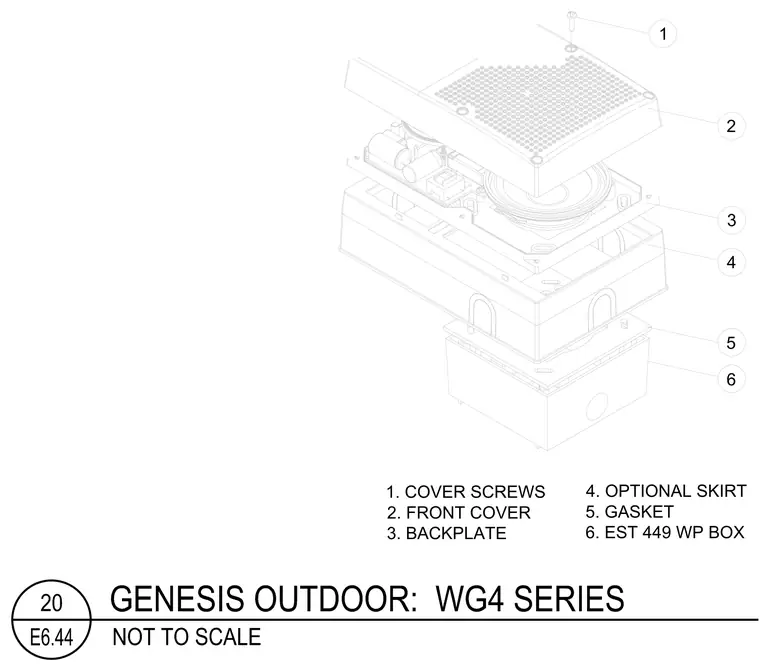

An exploded isometric drawing details the installation of the Genesis Outdoor WG4 series weatherproof notification appliance. The assembly mounts to an EST 449 weatherproof box with an intervening gasket for moisture protection. A backplate houses the internal electronics and supports an optional skirt. The front cover is secured over the backplate using cover screws.
1. COVER SCREWS 2. FRONT COVER 3. BACKPLATE 4. OPTIONAL SKIRT 5. GASKET 6. EST 449 WP BOX 1 2 3 4 5 6
