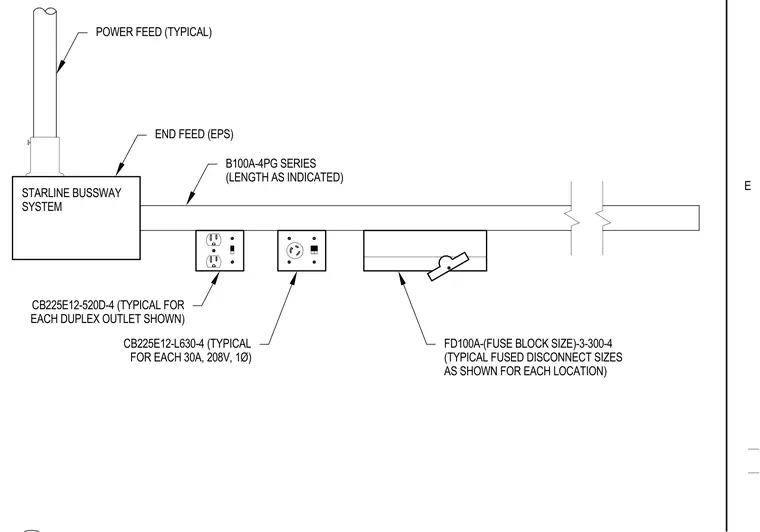

The Starline Bussway system layout incorporates a power feed entering the assembly from above and connecting into an end feed unit. The main run consists of a B100A-4PG series bussway of indicated length equipped with tap-off units. Connected drops include a CB225E12-520D-4 duplex outlet, a CB225E12-L630-4 thirty-ampere two-hundred-eight-volt single-phase outlet, and an FD100A fused disconnect.
B100A-4PG SERIES (LENGTH AS INDICATED) STARLINE BUSSWAY SYSTEM END FEED (EPS) POWER FEED (TYPICAL) CB225E12-520D-4 (TYPICAL FOR EACH DUPLEX OUTLET SHOWN) CB225E12-L630-4 (TYPICAL FOR EACH 30A, 208V, 1Ø) FD100A-(FUSE BLOCK SIZE)-3-300-4 (TYPICAL FUSED DISCONNECT SIZES AS SHOWN FOR EACH LOCATION) E
