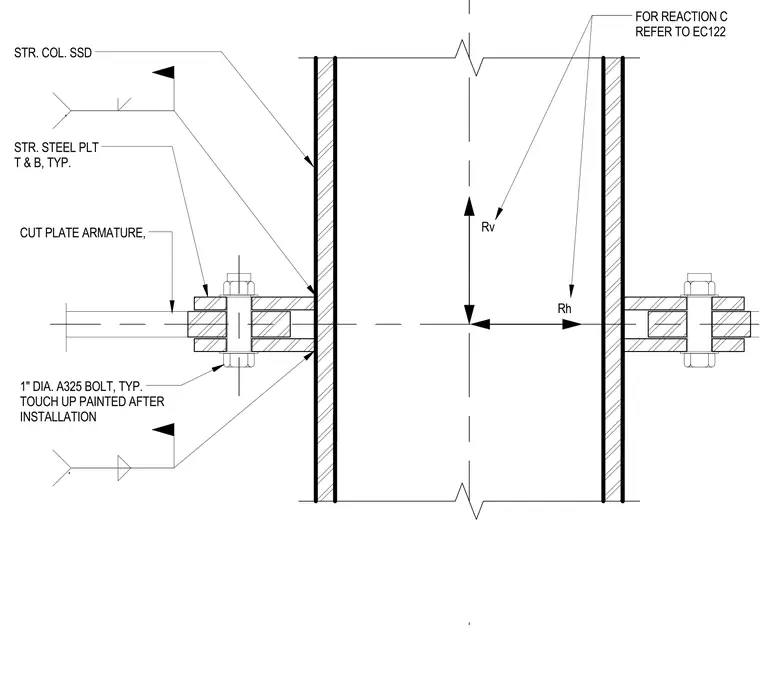

A cut plate armature connects to a structural steel column using typical one-inch diameter A325 bolts. Structural steel plates are welded top and bottom with field welds. All exposed metal is touched up and painted after installation. Horizontal and vertical reaction forces refer to sheet EC122.
CUT PLATE ARMATURE, STR. COL. SSD STR. STEEL PLT T & B, TYP. 1" DIA. A325 BOLT, TYP. TOUCH UP PAINTED AFTER INSTALLATION . . Rh Rv FOR REACTION C REFER TO EC122
