Electrical · E-2E3E6

Raceway and Nameplate Identification

Materials

About this detail

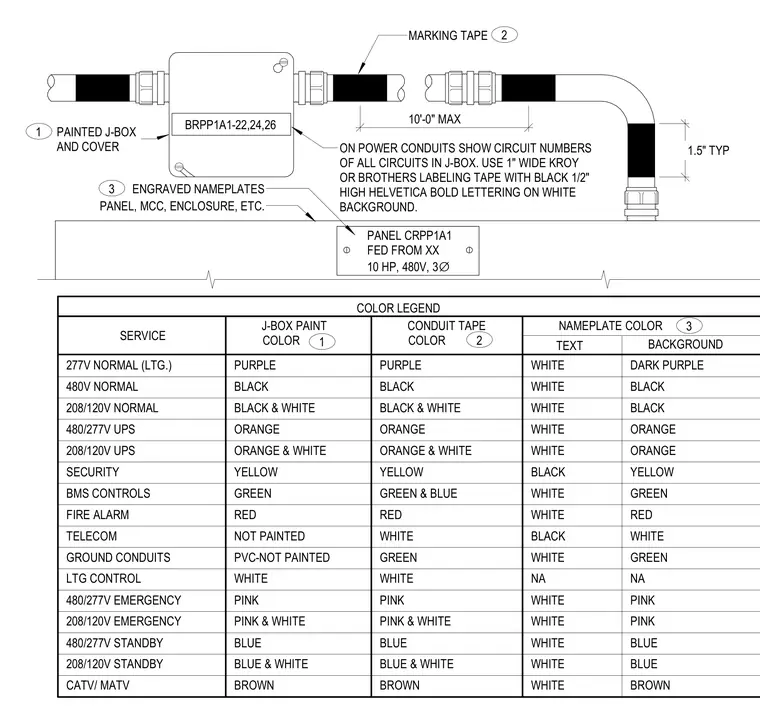

Electrical raceways, junction boxes, panels, motor control centers, and enclosures follow specific labeling and identification standards. Power conduits feature circuit numbers displayed in junction boxes and are wrapped with marking tape spaced at a maximum of ten feet. Labeling requires one-inch wide Kroy or Brother labeling tape utilizing black one-half-inch high Helvetica bold lettering on a white background. Engraved nameplates identify electrical equipment such as panels, motor control centers, and enclosures with specific feeder and voltage information. A complete color legend maps out paint colors, conduit tape colors, and nameplate text and background colors across various services including normal power, UPS, security, BMS controls, fire alarm, telecom, ground conduits, lighting control, emergency, standby, and low-voltage systems.
