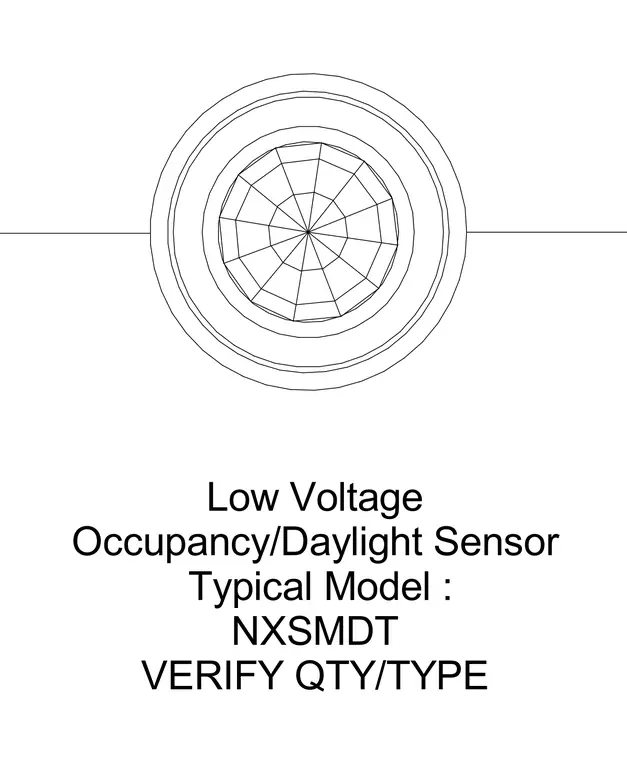

The low voltage occupancy and daylight sensor uses model NXSMDT with quantity and type subject to site verification. The sensor unit features concentric circular mounting housings and an internal faceted lens assembly.
