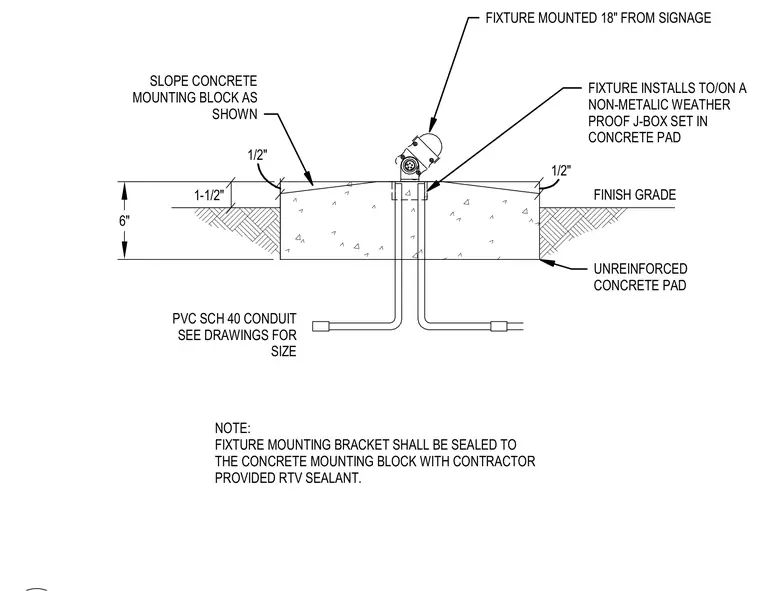

An on-grade flood light fixture mounts to a non-metallic weatherproof junction box set flush within a six-inch unreinforced concrete pad and sloped mounting block. Polyvinyl chloride schedule 40 conduit routes power supply lines into the bottom of the junction box from below finish grade. The fixture mounting bracket seals against the concrete mounting block using contractor-provided room temperature vulcanizing sealant, positioned eighteen inches from adjacent signage.
6" UNREINFORCED CONCRETE PAD FINISH GRADE PVC SCH 40 CONDUIT SEE DRAWINGS FOR SIZE 1-1/2" FIXTURE INSTALLS TO/ON A NON-METALIC WEATHER PROOF J-BOX SET IN CONCRETE PAD 1/2" 1/2" SLOPE CONCRETE MOUNTING BLOCK AS SHOWN NOTE: FIXTURE MOUNTING BRACKET SHALL BE SEALED TO THE CONCRETE MOUNTING BLOCK WITH CONTRACTOR PROVIDED RTV SEALANT. FIXTURE MOUNTED 18" FROM SIGNAGE
