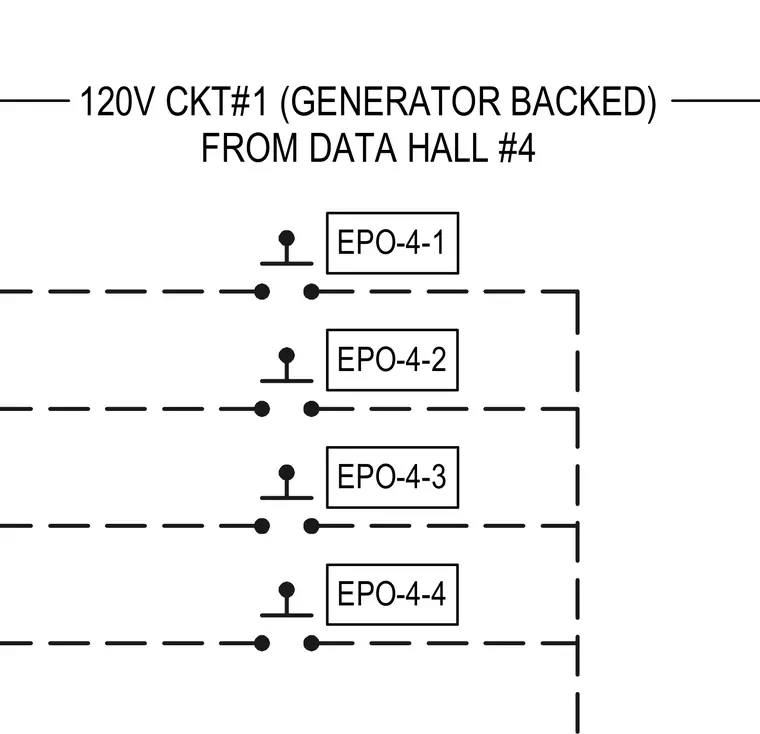

A 120-volt generator-backed circuit originates from data hall 4 and routes through four emergency power off stations designated EPO-4-1, EPO-4-2, EPO-4-3, and EPO-4-4. The dashed lines indicate the circuit wiring path connecting each sequential emergency power off switch.
