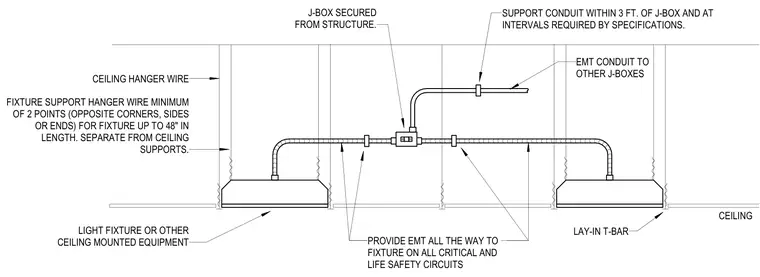

Ceiling-mounted light fixtures or equipment hang from a lay-in T-bar ceiling grid using a minimum of two ceiling hanger wires connected at opposite corners, sides, or ends for fixtures up to 48 inches in length. These fixture support hanger wires remain separate from the general ceiling supports. The junction box is securely anchored directly from the building structure. Electrical metallic tubing conduit connects to the junction box and receives support within 3 feet of the junction box and at intervals required by specifications. On all critical and life safety circuits, electrical metallic tubing runs continuously all the way to the fixture.
LIGHT FIXTURE OR OTHER CEILING MOUNTED EQUIPMENT PROVIDE EMT ALL THE WAY TO FIXTURE ON ALL CRITICAL AND LIFE SAFETY CIRCUITS LAY-IN T-BAR CEILING HANGER WIRE FIXTURE SUPPORT HANGER WIRE MINIMUM OF 2 POINTS (OPPOSITE CORNERS, SIDES OR ENDS) FOR FIXTURE UP TO 48" IN LENGTH. SEPARATE FROM CEILING SUPPORTS. J-BOX SECURED FROM STRUCTURE. SUPPORT CONDUIT WITHIN 3 FT. OF J-BOX AND AT INTERVALS REQUIRED BY SPECIFICATIONS. CEILING EMT CONDUIT TO OTHER J-BOXES
