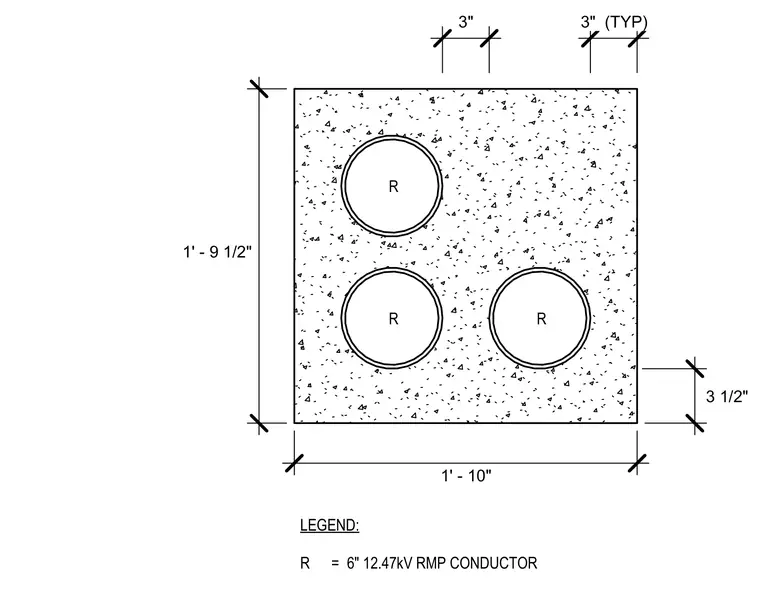

An underground electrical ductbank measuring one foot ten inches wide by one foot nine and one-half inches high is encased in concrete. Three six-inch twelve point four seven kilovolt RMP conductors are arranged within the concrete profile with three-inch typical clearances from edges and between conduits. The assembly maintains a three and one-half inch clearance from the bottom face to the adjacent conduit.
1' - 10" 1' - 9 1/2" 3 1/2" 3" (TYP) 3" LEGEND: R = 6" 12.47kV RMP CONDUCTOR R R R
