Transformer Mounting Detail

Materials

Concrete Steel Stainless Steel

Elements

Anchors / Embeds

Connections

Base Plate / Anchorage Bolted Connection Embed Plate

About this detail

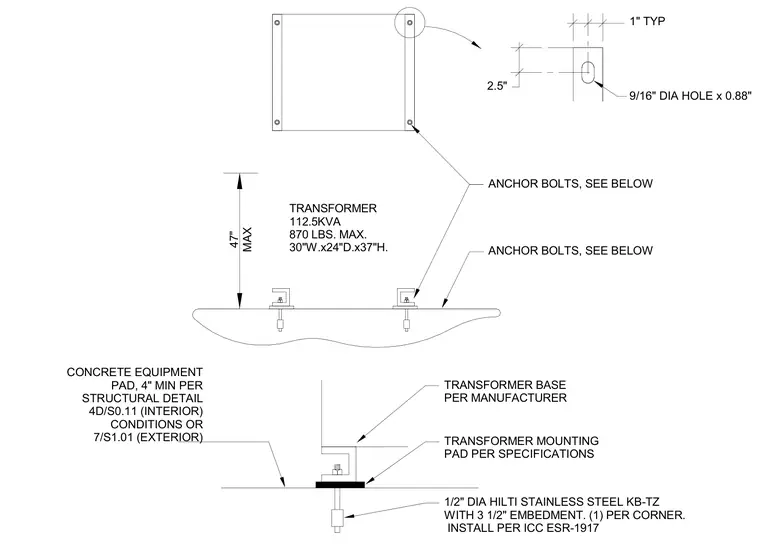

An electrical transformer with a maximum capacity of 112.5 kVA, weighing up to 870 lbs and measuring 30 inches wide by 24 inches deep by 37 inches high, is secured to a concrete equipment pad. The concrete pad is four inches minimum thickness, detailed per structural specifications for interior or exterior conditions. The transformer base sits upon a mounting pad per specifications, anchored by one half-inch diameter Hilti stainless steel KB-TZ anchor bolt with three and one-half inches of embedment per corner, installed in accordance with ICC ESR-1917.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
