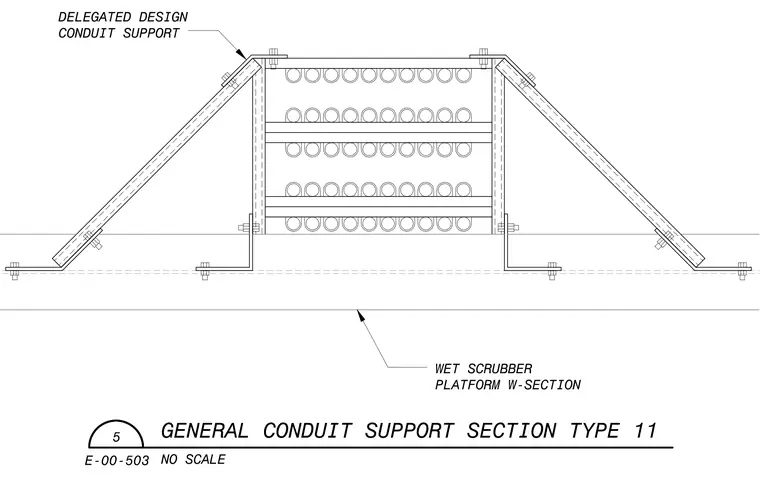

A structural conduit support assembly sits atop a wet scrubber platform wide-flange section. The multi-tier framing holds multiple rows of electrical conduits secured within horizontal racking members. Delegated design structural angles provide lateral bracing and are anchored to the framing with bolted connections. Base plates and angle clips fasten the support structure down to the supporting wide-flange beam flange.
DELEGATED DESIGN CONDUIT SUPPORT m m _ SE 31 uuuuuuuuuu nnoonnnnon UUUUUUUUUU oononnnnon uuuuuuuuuu 1 ML ML m ML W w WET SCRUBBER PLATFORM W-SECTION general conduit support SECTION TYPE 11 E-00-503 NO SCALE
