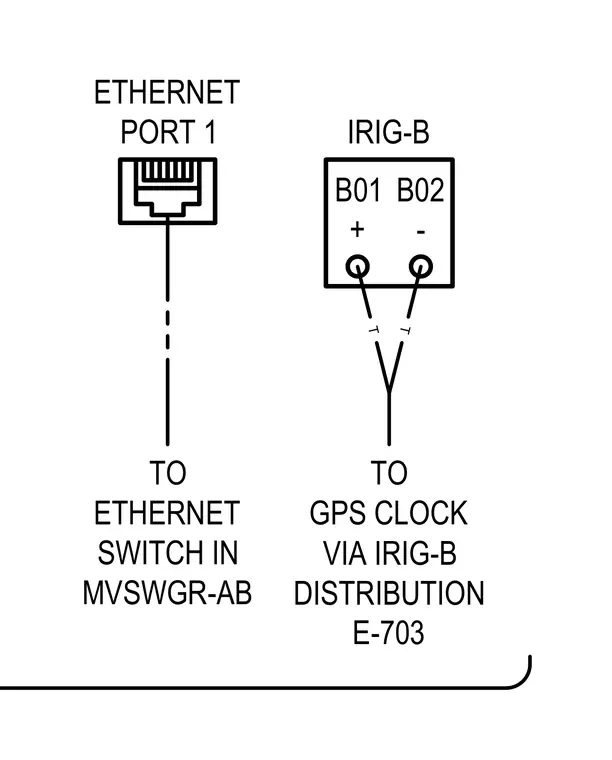

Terminal B01 and terminal B02 route an IRIG-B signal to a GPS clock via IRIG-B distribution E-703. Ethernet port 1 connects to an Ethernet switch located in medium voltage switchgear MVSWGR-AB.
T T B01 + B02 - IRIG-B TO GPS CLOCK VIA IRIG-B DISTRIBUTION E-703 ETHERNET PORT 1 TO ETHERNET SWITCH IN MVSWGR-AB
