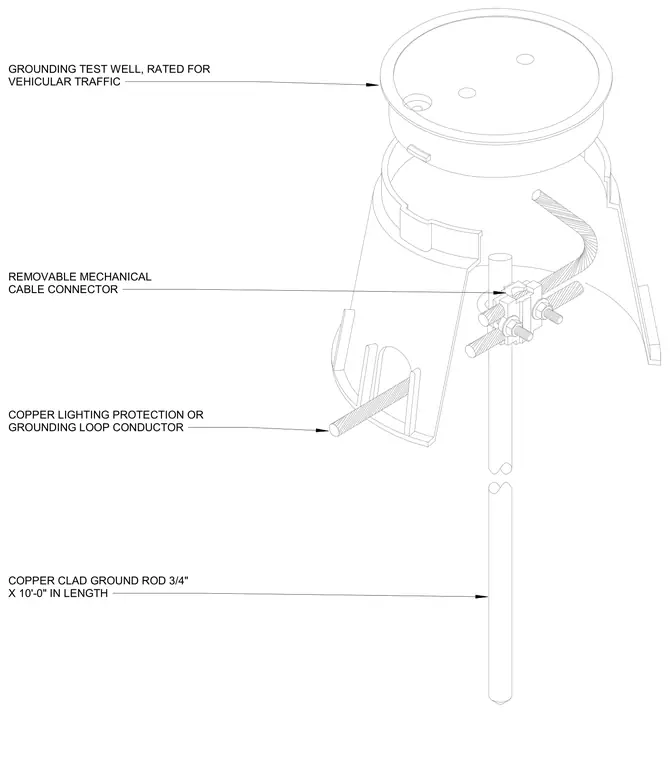

A three-quarter-inch by ten-foot-long copper-clad ground rod is driven into the earth and connected to a copper lighting protection or grounding loop conductor via a removable mechanical cable connector. The entire connection is housed within a grounding test well that is rated for vehicular traffic.
GROUNDING TEST WELL, RATED FOR VEHICULAR TRAFFIC REMOVABLE MECHANICAL CABLE CONNECTOR COPPER LIGHTING PROTECTION OR GROUNDING LOOP CONDUCTOR COPPER CLAD GROUND ROD 3/4" X 10'-0" IN LENGTH
