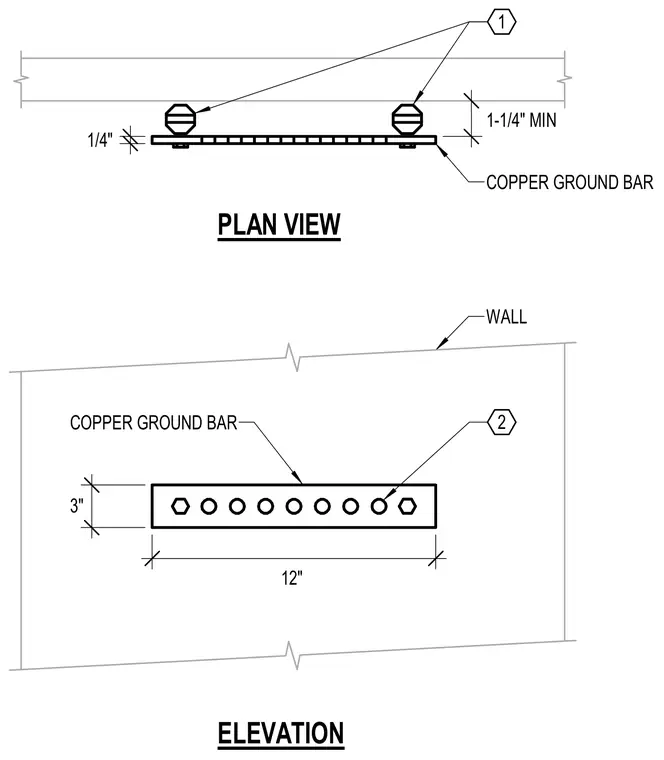

A copper ground bar measuring twelve inches long by three inches wide is mounted to a wall surface with a one-fourth inch offset maintained by standoffs providing a minimum one and one-fourth inch clearance. The bar features a horizontal row of pre-drilled connection holes for electrical grounding termination.
1/4" 1-1/4" MIN 1 3" 12" PLAN VIEW ELEVATION COPPER GROUND BAR COPPER GROUND BAR 2 WALL \ % ^x oooooood'o
