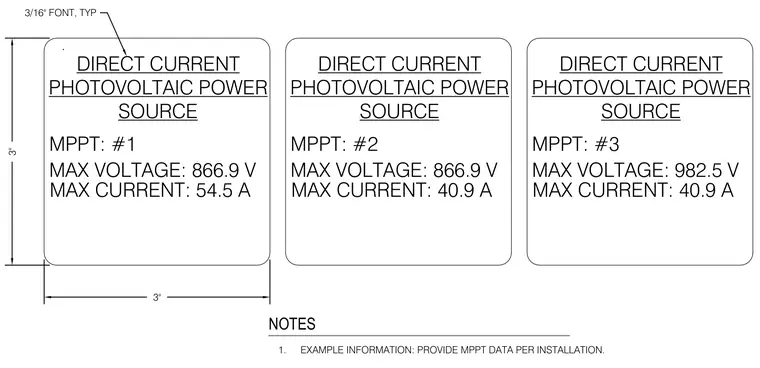

Photovoltaic power source labels specify direct current electrical ratings including maximum voltage and maximum current per MPPT channel. Each label measures three inches by three inches with standard three-sixteenths inch typical font sizing. Example information notes require providing specific MPPT data per installation.
3" 3" MAX VOLTAGE: 866.9 V MAX CURRENT: 54.5 A DIRECT CURRENT PHOTOVOLTAIC POWER SOURCE MPPT: #1 3/16" FONT, TYP MAX VOLTAGE: 866.9 V MAX CURRENT: 40.9 A DIRECT CURRENT PHOTOVOLTAIC POWER SOURCE MPPT: #2 MAX VOLTAGE: 982.5 V MAX CURRENT: 40.9 A DIRECT CURRENT PHOTOVOLTAIC POWER SOURCE MPPT: #3 NOTES 1. EXAMPLE INFORMATION: PROVIDE MPPT DATA PER INSTALLATION.
