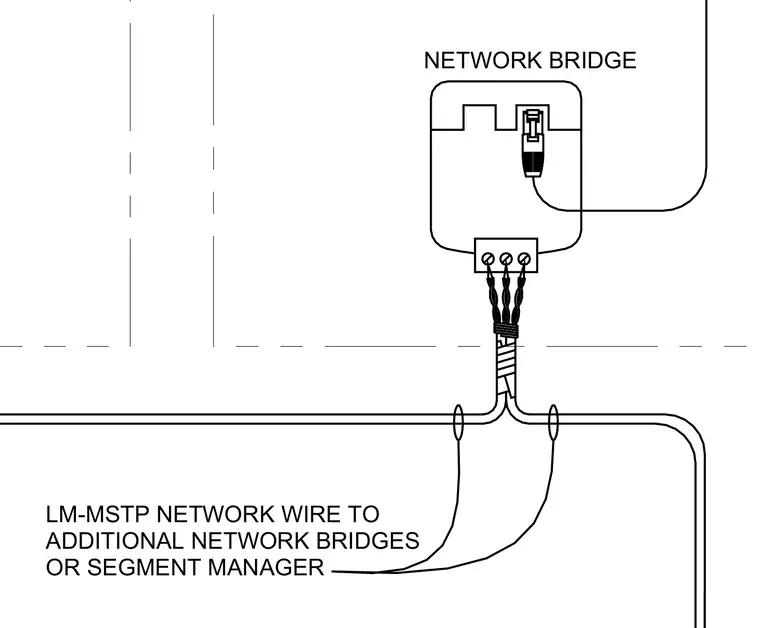

An LM-MSTP network wire connects to the terminal block of the network bridge, routing outward to additional network bridges or a segment manager. The twisted-pair cabling interfaces with the device terminals and continues through the network infrastructure.
NETWORK BRIDGE LM-MSTP NETWORK WIRE TO ADDITIONAL NETWORK BRIDGES OR SEGMENT MANAGER
