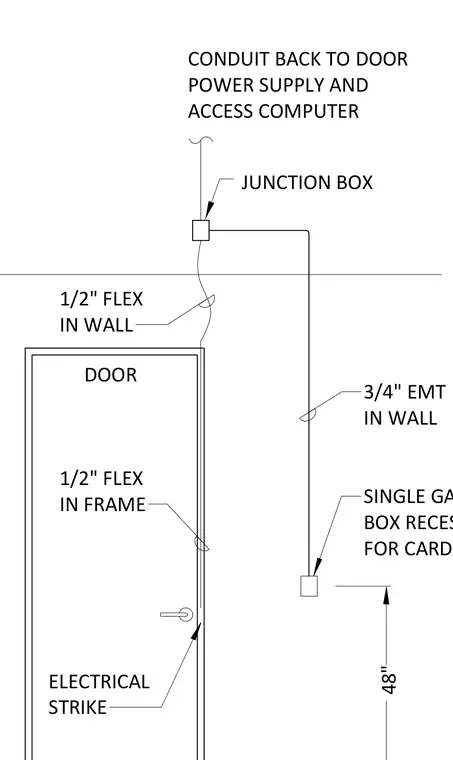

A single gang junction box is recessed in the wall at forty-eight inches above the finished floor for a card reader. A three-quarter-inch electrical metallic tubing conduit runs in the wall from the single gang junction box to an upper junction box. One-half-inch flexible metal conduit routes through the wall and into the door frame to connect with the electrical strike.
48" ELECTRICAL STRIKE 1/2" FLEX IN FRAME DOOR 1/2" FLEX IN WALL 3/4" EMT IN WALL SINGLE GANG JUNCTION BOX RECESSED IN WALL FOR CARD READER. CONDUIT BACK TO DOOR POWER SUPPLY AND ACCESS COMPUTER JUNCTION BOX
