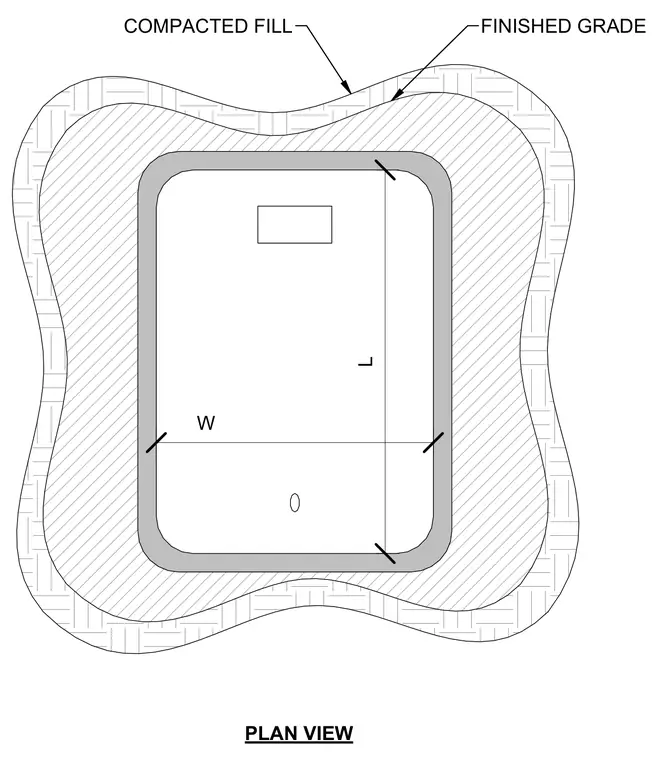

An electrical pullbox is shown in plan view surrounded by compacted fill and finished grade. Dimensions for length and width define the vault bounds.
