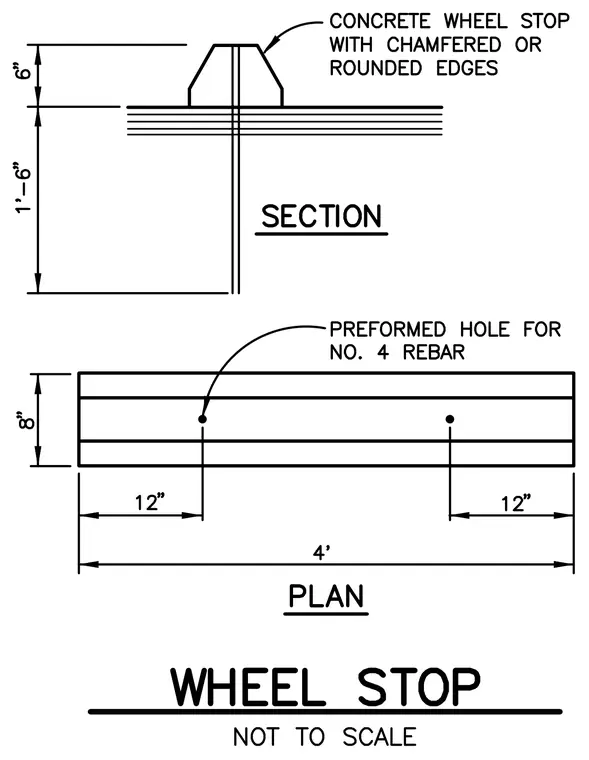

A precast concrete wheel stop features chamfered or rounded edges and an overall length of four feet with an eight-inch width and six-inch height. Two preformed holes for number four rebar are positioned twelve inches inward from each end. The assembly sits on a paved surface with indicated vertical dimensions for the stop height and anchoring depth.
