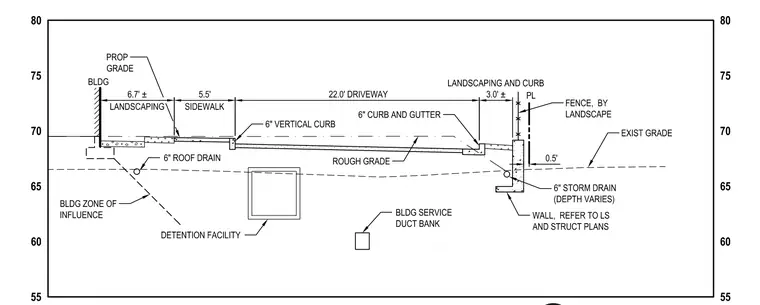

The transition extends from the building face across a 6.7-foot landscaping strip and a 5.5-foot sidewalk to a 22-foot wide driveway. A 6-inch vertical curb bounds the driveway on the building side, while a 6-inch curb and gutter on the opposite side transitions to a 3-foot landscaping area and a property line fence. Subsurface infrastructure includes a 6-inch roof drain within the building zone of influence and a 6-inch storm drain beneath the curb and gutter. A detention facility and building service duct bank sit below the driveway grade. The assembly terminates at a wall structure, with specific details referenced to landscape and structural plans.
