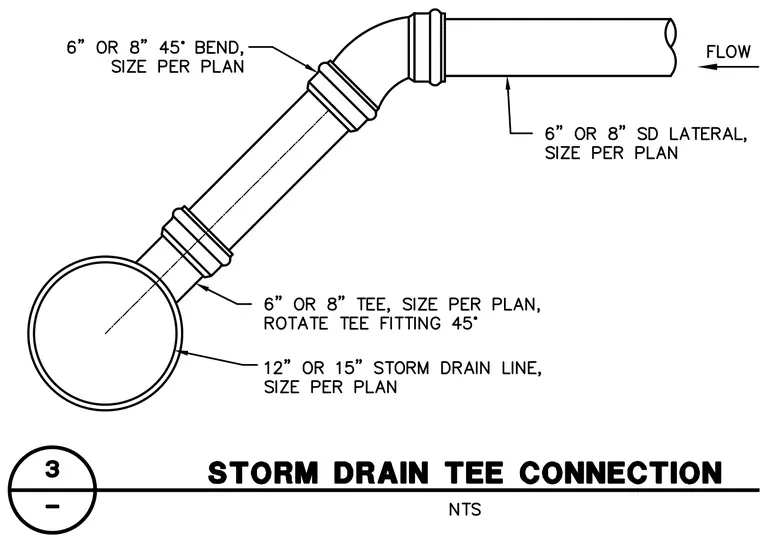

A six-inch or eight-inch storm drain lateral connects to a twelve-inch or fifteen-inch storm drain line sized per plan. Flow enters through the lateral pipe fitted with a six-inch or eight-inch forty-five-degree bend sized per plan. A six-inch or eight-inch tee fitting sized per plan connects the lateral assembly to the main storm drain line and is rotated forty-five degrees.
