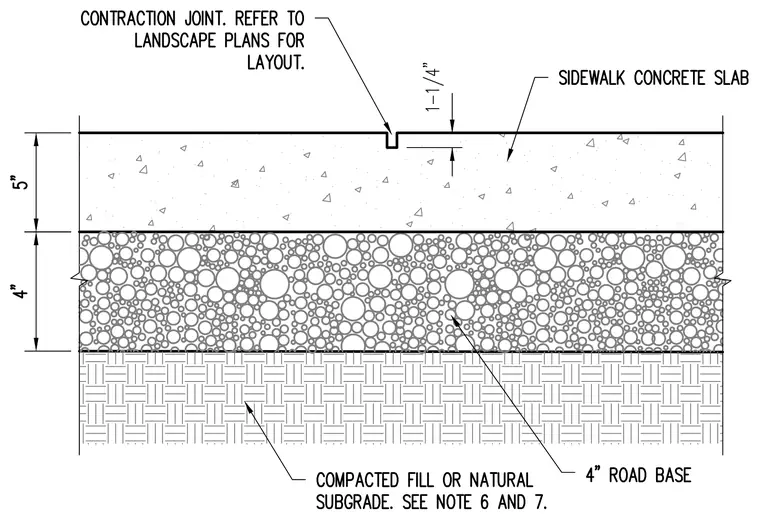

A five-inch-thick concrete sidewalk slab rests on a four-inch road base and compacted fill or natural subgrade, incorporating a contraction joint one-and-one-quarter inches deep with its layout determined per landscape plans, while the four-inch-thick road base layer is placed directly over the compacted fill or natural subgrade.
