The dowel bar assembly consists of two 0.362-inch diameter top spacer bars and two 0.362-inch diameter bottom spacer bars welded to 0.362-inch diameter Vee leg chairs at all intersections. Dowels are welded alternately to the top spacer bars. Three 0.177-inch diameter spreader wires are welded to the top spacer bars and crimped after installation. The entire dowel bar assembly must be fastened to the base course prior to paving to prevent floating during paving operations.

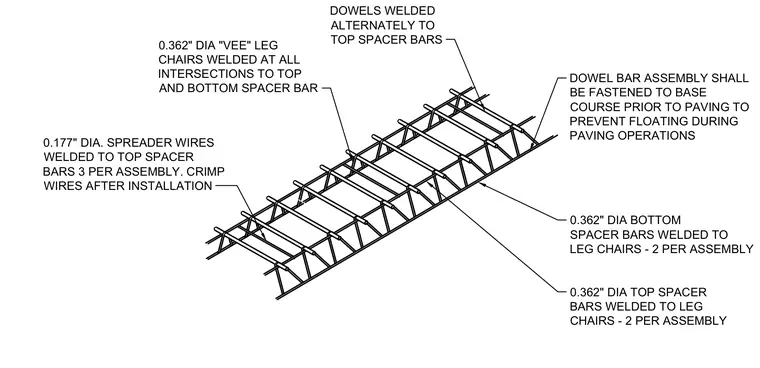

DOWELS WELDED ALTERNATELY TO TOP SPACER BARS 0.362" DIA "VEE" LEG CHAIRS WELDED AT ALL INTERSECTIONS TO TOP AND BOTTOM SPACER BAR 0.177" DIA. SPREADER WIRES WELDED TO TOP SPACER BARS 3 PER ASSEMBLY. CRIMP WIRES AFTER INSTALLATION 0.362" DIA BOTTOM SPACER BARS WELDED TO LEG CHAIRS - 2 PER ASSEMBLY 0.362" DIA TOP SPACER BARS WELDED TO LEG CHAIRS - 2 PER ASSEMBLY DOWEL BAR ASSEMBLY SHALL BE FASTENED TO BASE COURSE PRIOR TO PAVING TO PREVENT FLOATING DURING PAVING OPERATIONS
