Architectural · C-ZNM6D

Door Frame Head Framing and Head Can Detail

Elements

About this detail

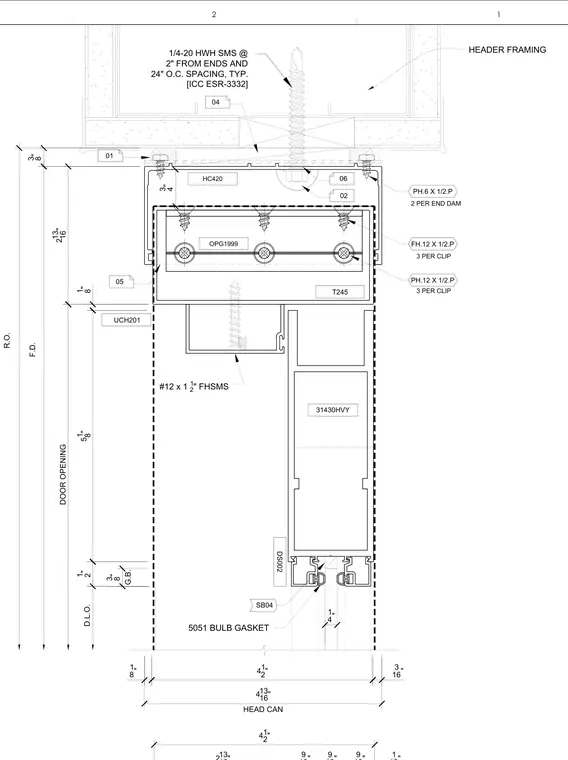

Head framing and head can assembly for a door opening. The head can is fastened to the overhead header framing using 1/4-20 hex washer head self-tapping screws spaced two inches from ends and twenty-four inches on center, supplemented by pan head screws at the end dams. The internal clips and channels, including components T245, HC420, and OPG1999, are secured with flat head screws per clip. The vertical door framing members connect via #12 x 1-1/2" flat head self-drilling screws. A 5051 bulb gasket is installed at the underside of the head can.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
