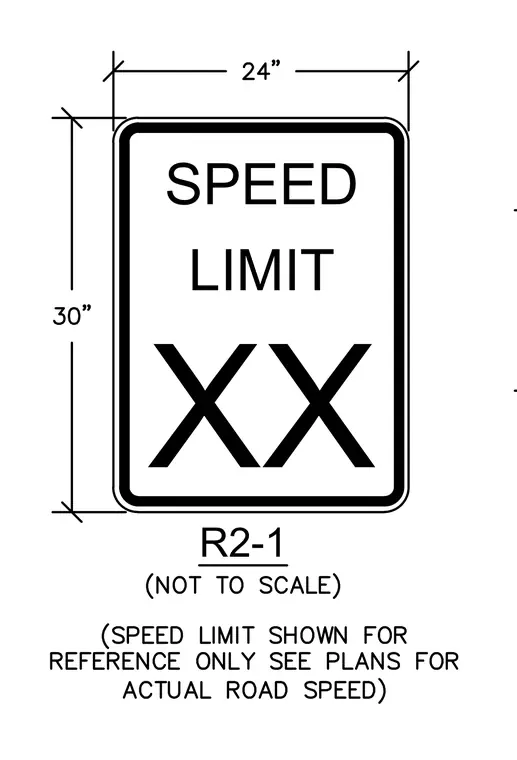

A standard regulatory speed limit sign panel designated as R2-1 measures twenty-four inches in width by thirty inches in height. The sign face features standard lettering for speed limit regulation with a placeholder variable for the numerical speed limit. Notes indicate that the speed limit shown is for reference only and the user should consult the civil plans for the actual road speed.
