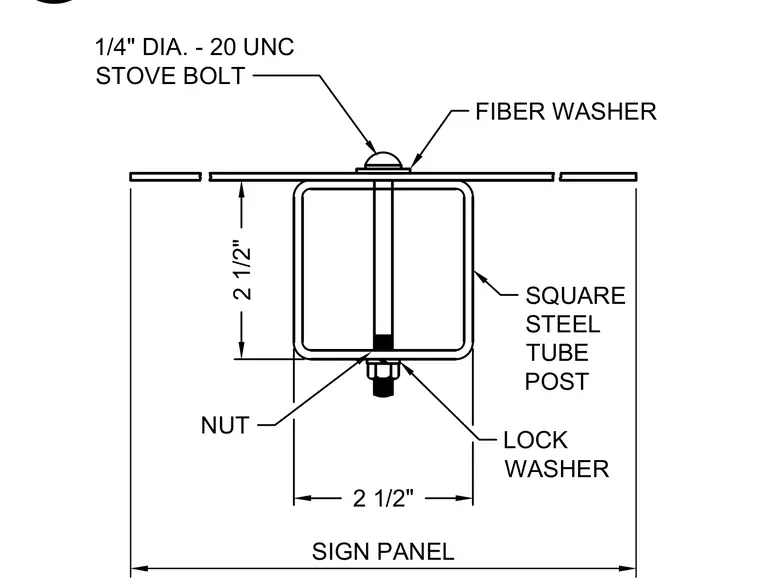

An accessible parking sign panel mounts directly to a two-and-a-half-inch square steel tube post. A one-quarter-inch diameter by twenty UNC stove bolt passes through the sign panel, fiber washer, and both walls of the hollow steel tube. The connection is secured at the back with a lock washer and nut.
2 1/2" 2 1/2" SIGN PANEL FIBER WASHER 1/4" DIA. - 20 UNC STOVE BOLT NUT LOCK WASHER SQUARE STEEL TUBE POST
