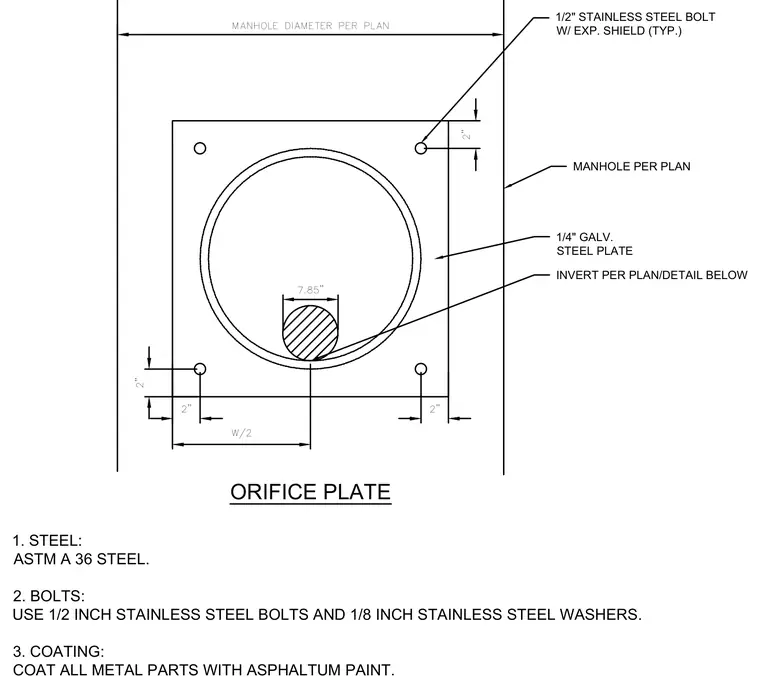

A quarter-inch galvanized steel orifice plate is secured inside a manhole structure with one-half-inch stainless steel bolts and expansion shields. The steel plate is constructed from ASTM A36 steel and all metal parts are coated with asphaltum paint. The assembly features specified dimensions for bolt spacing and manhole diameter per plan, with the invert located per plan below.
INVERT PER PLAN/DETAIL BELOW 1/2" STAINLESS STEEL BOLT W/ EXP. SHIELD (TYP.) 1/4" GALV. STEEL PLATE ORIFICE PLATE 1. STEEL: ASTM A 36 STEEL. 2. BOLTS: USE 1/2 INCH STAINLESS STEEL BOLTS AND 1/8 INCH STAINLESS STEEL WASHERS. 3. COATING: COAT ALL METAL PARTS WITH ASPHALTUM PAINT. MANHOLE PER PLAN
