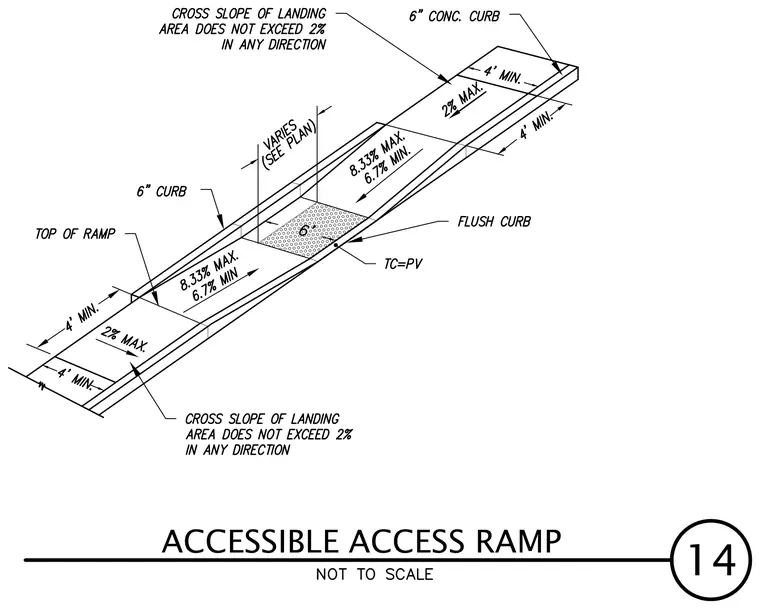

An accessible concrete access ramp features maximum running slopes of 8.33 percent and minimum slopes of 6.7 percent, with landing areas limited to a maximum cross slope of 2 percent in any direction. The ramp width varies as shown on plan and includes a flush curb alongside standard six-inch concrete curbs. Landings maintain a minimum length of four feet at both the top and intermediate points.
