Civil · C-ZER6N

Aircraft Rated End Cleanout

Materials

Elements

Doors Drainage Site / Paving Connections / Plates

About this detail

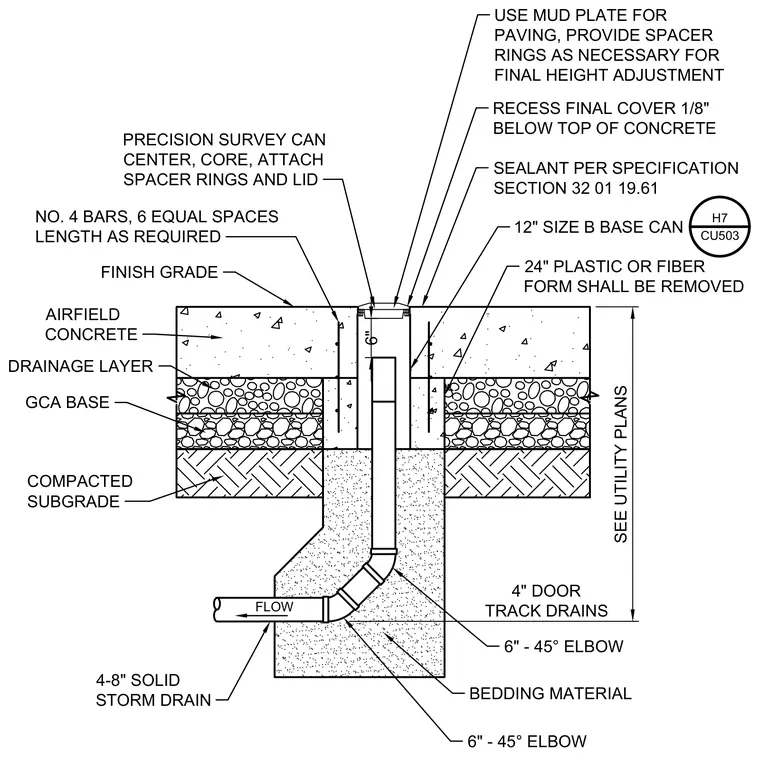

An aircraft-rated end cleanout is embedded within an airfield concrete slab, a drainage layer, a GCA base, and a compacted subgrade. A twelve-inch size B base can houses a vertical pipe run connected via six-inch forty-five-degree elbows to a four to eight-inch solid storm drain. A precision survey can centers and cores the assembly, utilizing a mud plate for paving and spacer rings for final height adjustment of the lid. The final cover is recessed one-eighth of an inch below the top of the concrete and sealed per specification section thirty-two zero one nineteen point sixty-one. Number four reinforcing bars are spaced equally around the base can with lengths as required.
