Structural · C-Z95EF

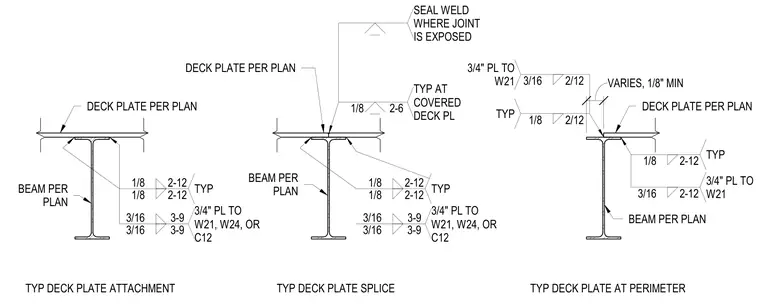

Typical Steel Deck Plate Attachment, Splice, and Perimeter Details

Materials

Steel

Elements

Beams Decks Connections / Plates

Connections

Welded Connection Rebar Splice / Development Deck Attachment

About this detail

Steel deck plate attachments and splices are welded to supporting structural steel beams such as W21, W24, or C12 shapes sized per plan. The deck plates are secured with fillet welds specified with size and spacing, including a seal weld applied where joints are exposed at covered deck plates. Perimeter conditions indicate deck plates bearing over structural steel beams with specific weld sizes and minimum joint clearances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
