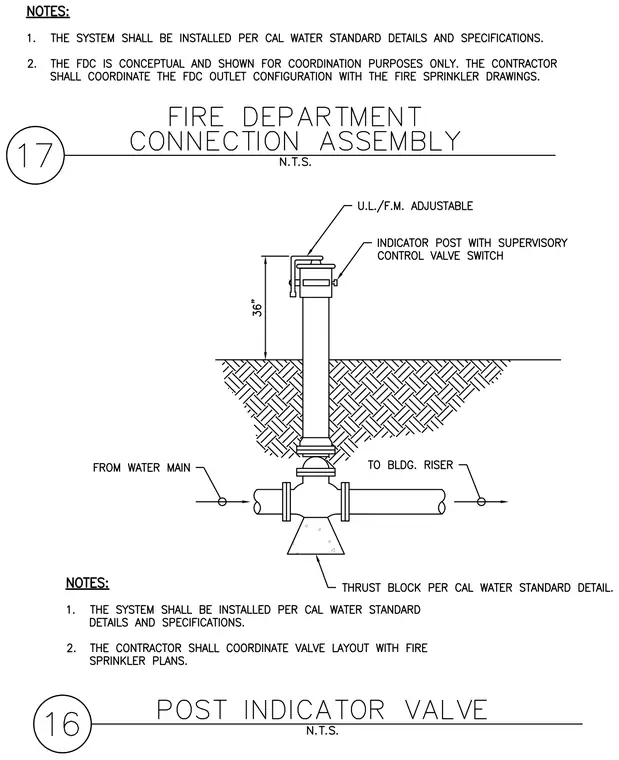

An indicator post with a supervisory control valve switch extends thirty-six inches above grade. The assembly connects an underground water main to the building riser, incorporating an Underwriters Laboratories and Factory Mutual adjustable valve. A concrete thrust block supports the underground tee fitting per standard utility details. Installation must comply with local water standards and coordinate with fire sprinkler drawings.
