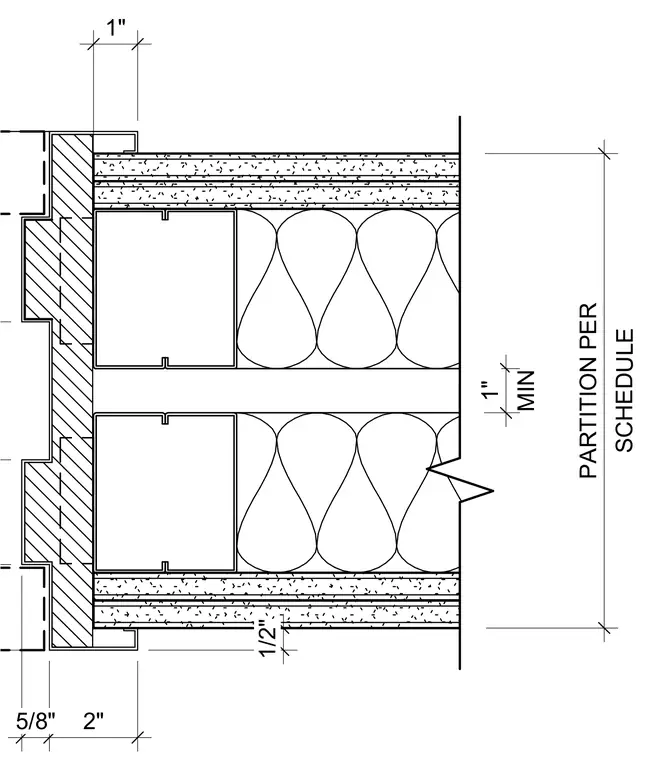

This plan detail shows a door jamb condition intersecting a partition framed per schedule. The assembly features hollow metal framing with cavity insulation and multiple layers of gypsum board on each side. A one-inch minimum clearance is maintained at the jamb interface.
