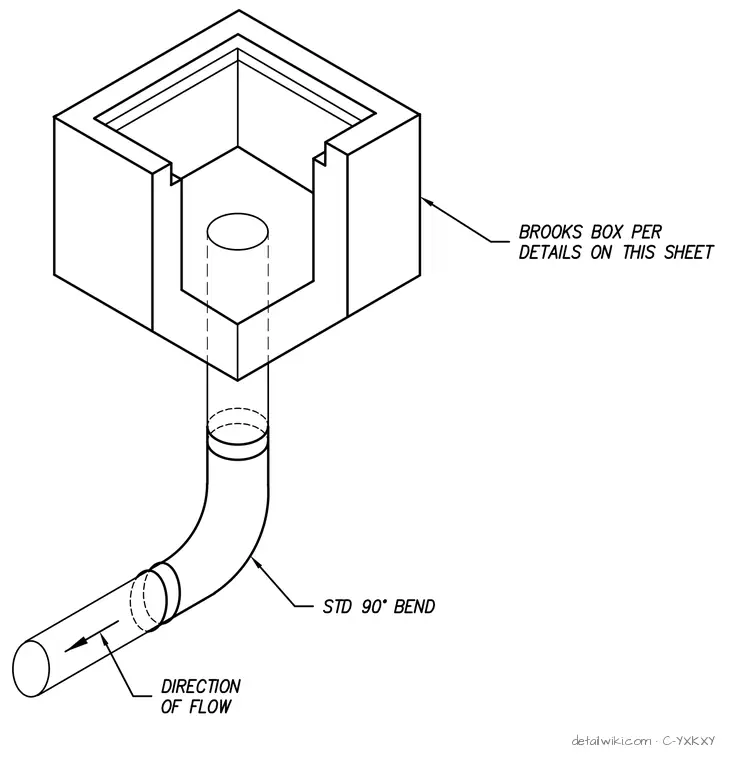

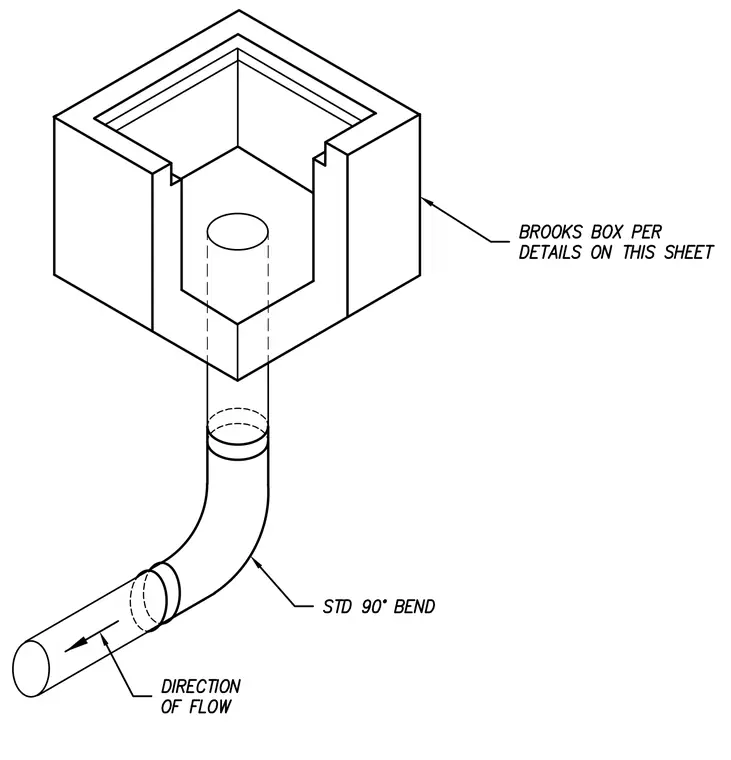

The assembly consists of a Brooks box utility enclosure with a vertical pipe outlet extending from its base. A standard 90-degree bend connects the vertical outlet to a horizontal pipe run. The direction of flow is indicated along the horizontal pipe segment. The Brooks box is to be installed according to the specific details provided elsewhere on the sheet.
