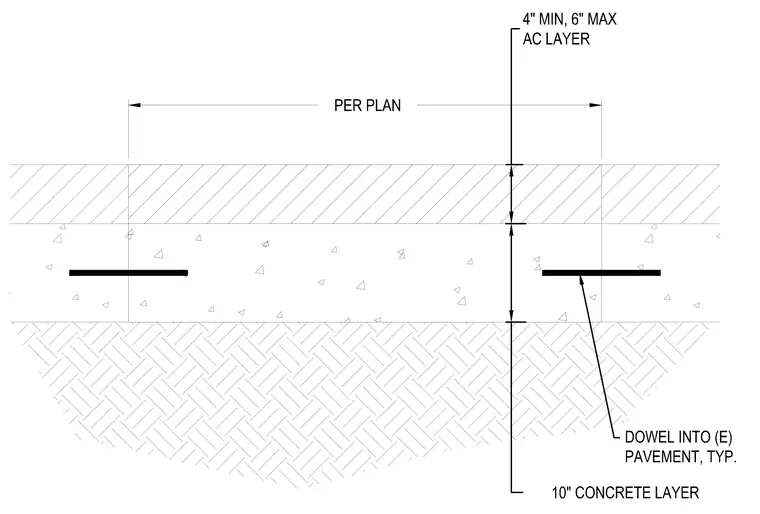

An asphalt concrete layer with a minimum thickness of four inches and a maximum of six inches sits atop a ten-inch concrete layer. Steel dowels are embedded into the existing pavement typically as specified per plan. Spacing and dimensions are verified per plan.
4" MIN, 6" MAX AC LAYER PER PLAN 7 41 41 3 4 </ A A <7- 4 <7 <7 4 41 41 <7 41 DOWEL INTO (E) PAVEMENT, TYP. 10" CONCRETE LAYER
