Shingled polyethylene sheeting is placed over the soil slope with a slope ratio of two-to-one or steeper. Two-inch by two-inch by two-foot six-inch wood stakes are embedded eighteen inches minimum into the ground. Sandbags are placed at ten-foot to twenty-foot on center intervals with ropes used in lieu of additional stakes. The sheet is buried and backfilled with compacted three-quarters to one-and-one-half-inch washed gravel typically. Sheeting covers all bare soil on the slope and overlaps a minimum of twelve inches with sandbag anchors placed in the center of the overlap.

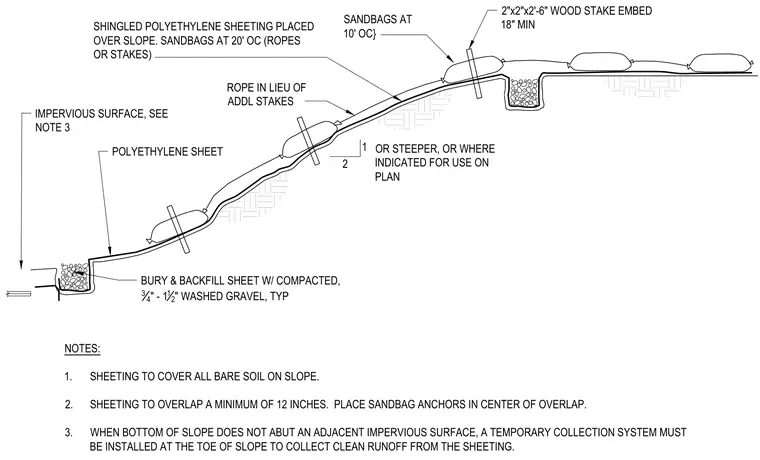

IMPERVIOUS SURFACE, SEE NOTE 3 1 2 ROPE IN LIEU OF ADDL STAKES SHINGLED POLYETHYLENE SHEETING PLACED OVER SLOPE. SANDBAGS AT 20' OC (ROPES OR STAKES) SANDBAGS AT 10' OC} BURY & BACKFILL SHEET W/ COMPACTED, 3 4 " - 1 12 " WASHED GRAVEL, TYP 2"x2"x2'-6" WOOD STAKE EMBED 18" MIN NOTES: 1. SHEETING TO COVER ALL BARE SOIL ON SLOPE. 2. SHEETING TO OVERLAP A MINIMUM OF 12 INCHES. PLACE SANDBAG ANCHORS IN CENTER OF OVERLAP. 3. WHEN BOTTOM OF SLOPE DOES NOT ABUT AN ADJACENT IMPERVIOUS SURFACE, A TEMPORARY COLLECTION SYSTEM MUST BE INSTALLED AT THE TOE OF SLOPE TO COLLECT CLEAN RUNOFF FROM THE SHEETING. OR STEEPER, OR WHERE INDICATED FOR USE ON PLAN POLYETHYLENE SHEET
