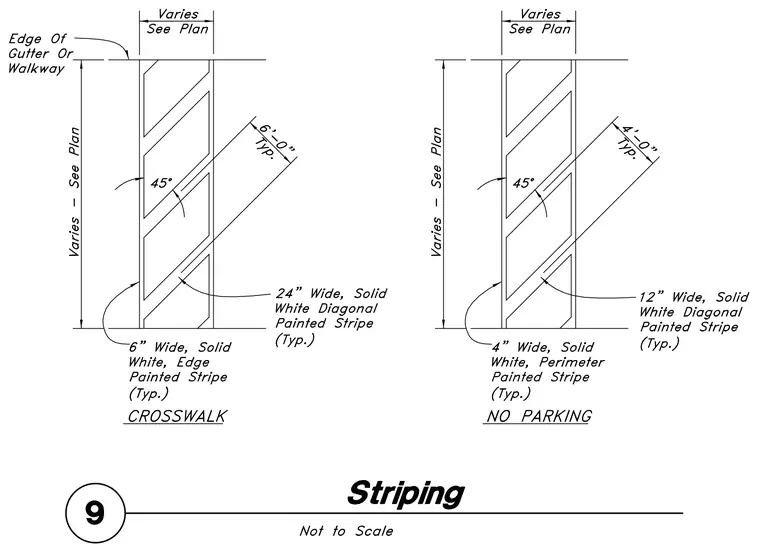

This drawing outlines standard pavement marking details for pedestrian crosswalks and no-parking zones. The crosswalk detail features a six-inch-wide solid white edge painted stripe and twenty-four-inch-wide solid white diagonal painted stripes spaced at six-foot typical intervals set at a forty-five-degree angle. The no-parking detail utilizes a four-inch-wide solid white perimeter painted stripe and twelve-inch-wide solid white diagonal painted stripes spaced at four-foot typical intervals at the same forty-five-degree angle. Dimensions for length and width vary as required per plan between edges of gutters or walkways.
