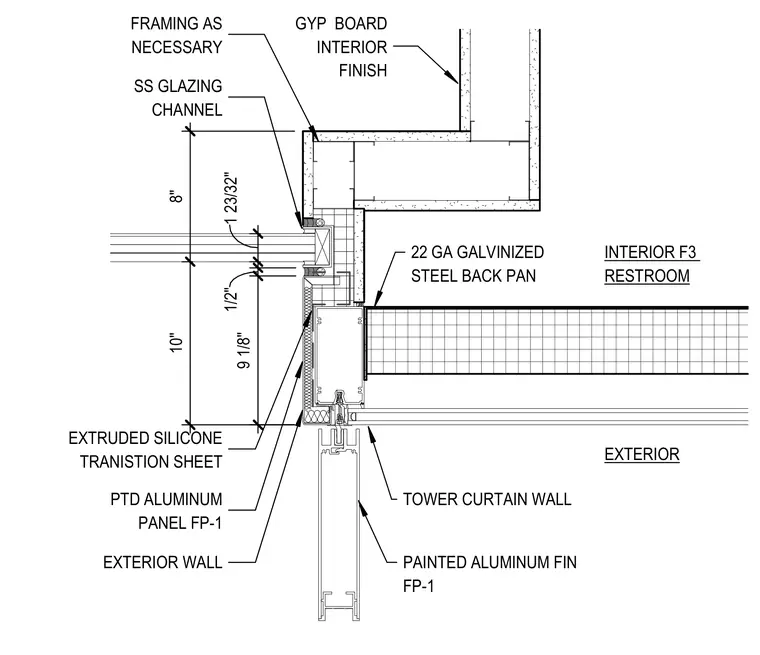

This plan detail shows the interface between a tower curtain wall and an interior restroom partition at the podium level. The assembly incorporates painted aluminum panel FP-1 backed by twenty-two gauge galvanized steel back pan framing and an exterior wall transition sealed with an extruded silicone transition sheet. A stainless steel glazing channel secures the vision glass, complemented by a painted aluminum fin FP-1 on the exterior. The interior finish consists of gypsum board supported by necessary framing.
1 2 3 / 3 2 " PAINTED ALUMINUM FIN FP-1 TOWER CURTAIN WALL PTD ALUMINUM PANEL FP-1 INTERIOR F3 RESTROOM EXTERIOR 1 0 " 8 " 9 1 / 8 " 1 / 2 " 22 GA GALVINIZED STEEL BACK PAN FRAMING AS NECESSARY GYP BOARD INTERIOR FINISH EXTERIOR WALL SS GLAZING CHANNEL EXTRUDED SILICONE TRANISTION SHEET
