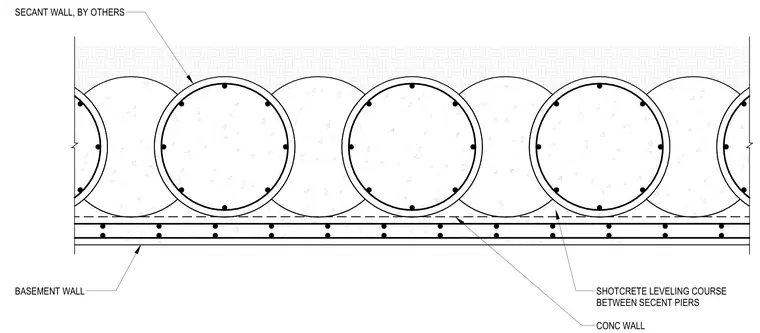

A concrete basement wall bears against a secant pile wall with an intervening shotcrete leveling course placed between the secant piers. The secant wall is installed by others and features interlocking reinforced concrete piles. The concrete wall is constructed directly against the shotcrete infill and leveling layer.
CONC WALL SECANT WALL, BY OTHERS BASEMENT WALL SHOTCRETE LEVELING COURSE BETWEEN SECENT PIERS
