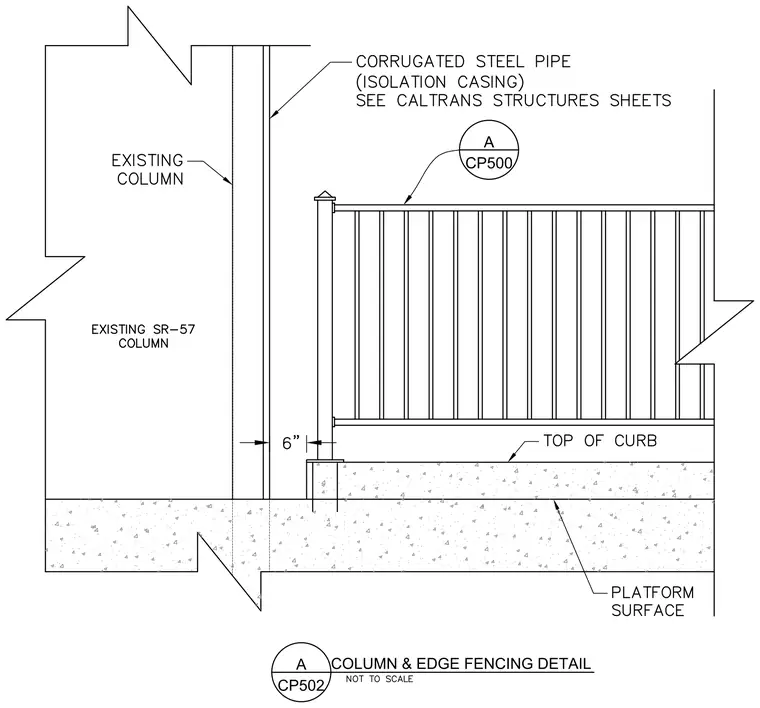

An edge fence post is anchored to a concrete platform surface adjacent to an existing structural column. A corrugated steel pipe isolation casing surrounds the existing column per Caltrans structures sheets, maintaining a six-inch clearance from the column face. The railing system includes top and bottom rails with vertical balusters secured above the platform surface.
