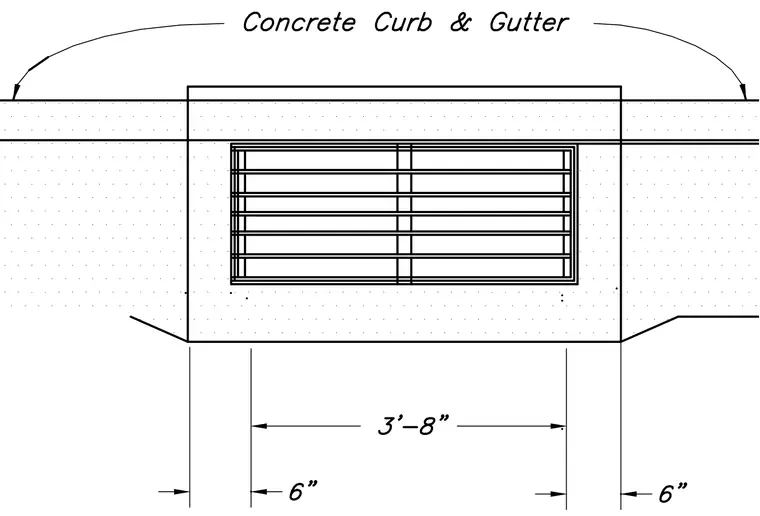

A drainage inlet is integrated into a cast-in-place concrete curb and gutter assembly. The opening features a metal grate spanning three feet eight inches, flanked by six-inch concrete transition segments on either side. The surrounding concrete profile matches the adjacent continuous curb and gutter run.
