C-YAW8S — Civil Sheet Index

Civil · C-YAW8S

Civil Sheet Index

About this detail

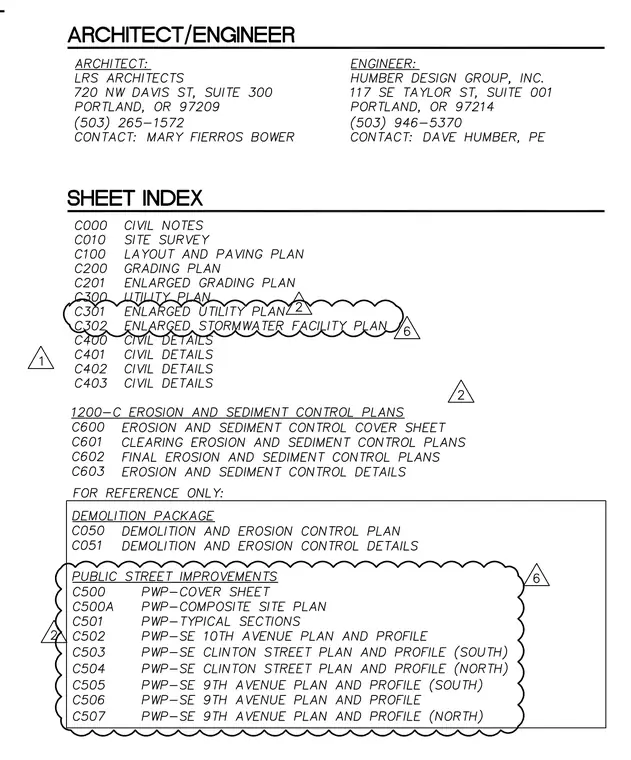

The civil sheet index lists drawing numbers, sheet titles, and consultant information for architects and engineers. It catalogs drawing packages ranging from civil notes, site surveys, layout and paving plans, grading plans, utility plans, stormwater facility plans, and civil details. Additional referenced packages include erosion and sediment control plans, demolition packages, and public street improvement plans. Consultant details include the architect, LRS Architects, and the engineer, Humber Design Group, Inc.
