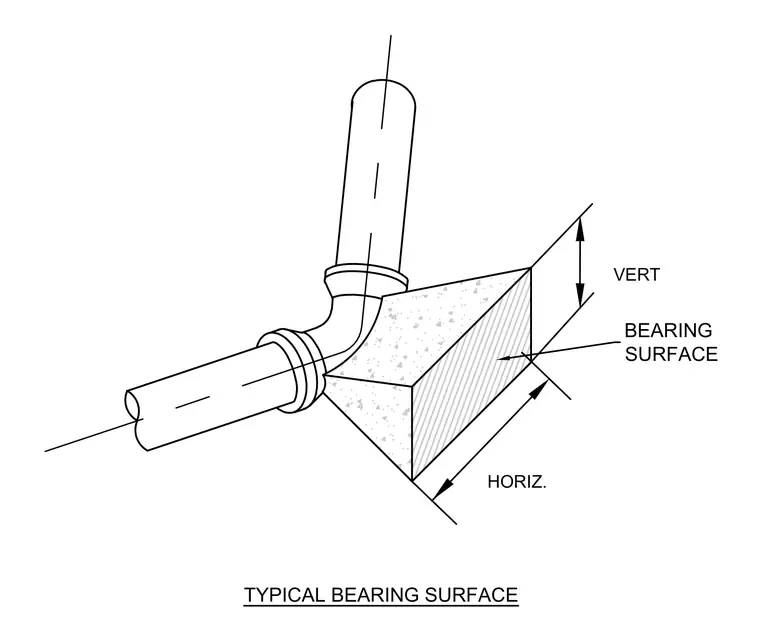

A typical concrete bearing surface supports a piping elbow assembly. Horizontal and vertical dimensions define the bearing block configuration. Piping connects through the assembly adjacent to the structural support surface.
BEARING SURFACE HORIZ. VERT TYPICAL BEARING SURFACE
