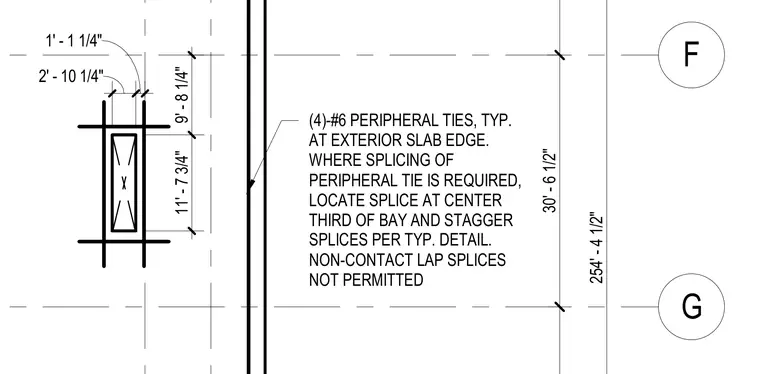

The exterior slab edge is reinforced with four number six peripheral ties typically placed around the perimeter. Splicing of the peripheral ties requires location at the center third of the bay with staggered splices. Non-contact lap splices are explicitly prohibited.
F G 2' - 10 1/4" 1' - 1 1/4" 9' - 8 1/4" 11' - 7 3/4" (4)-#6 PERIPHERAL TIES, TYP. AT EXTERIOR SLAB EDGE. WHERE SPLICING OF PERIPHERAL TIE IS REQUIRED, LOCATE SPLICE AT CENTER THIRD OF BAY AND STAGGER SPLICES PER TYP. DETAIL. NON-CONTACT LAP SPLICES NOT PERMITTED 30' - 6 1/2" 254' - 4 1/2"
