Text on the drawing

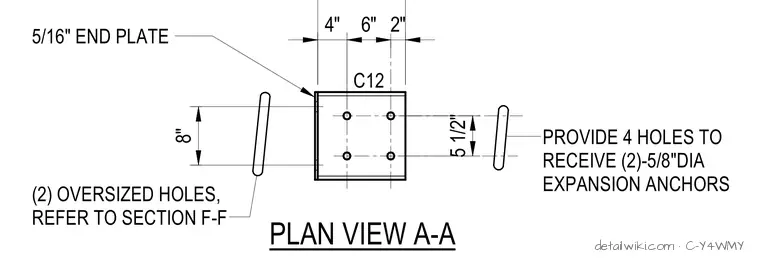

PLAN VIEW A-A 5/16" END PLATE (2) OVERSIZED HOLES, REFER TO SECTION F-F PROVIDE 4 HOLES TO RECEIVE (2)-5/8"DIA EXPANSION ANCHORS C12 8" 4" 6" 2" 5 1/2"
