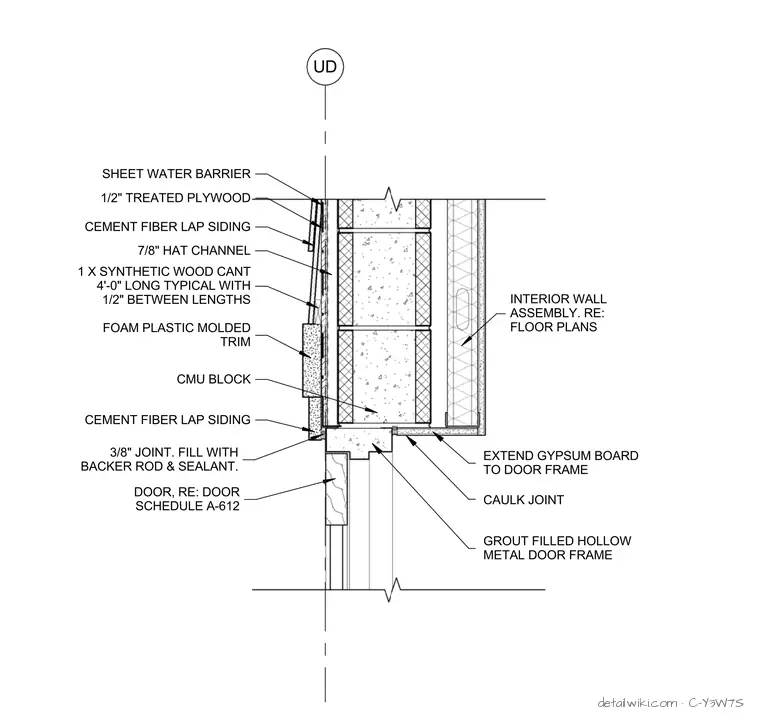

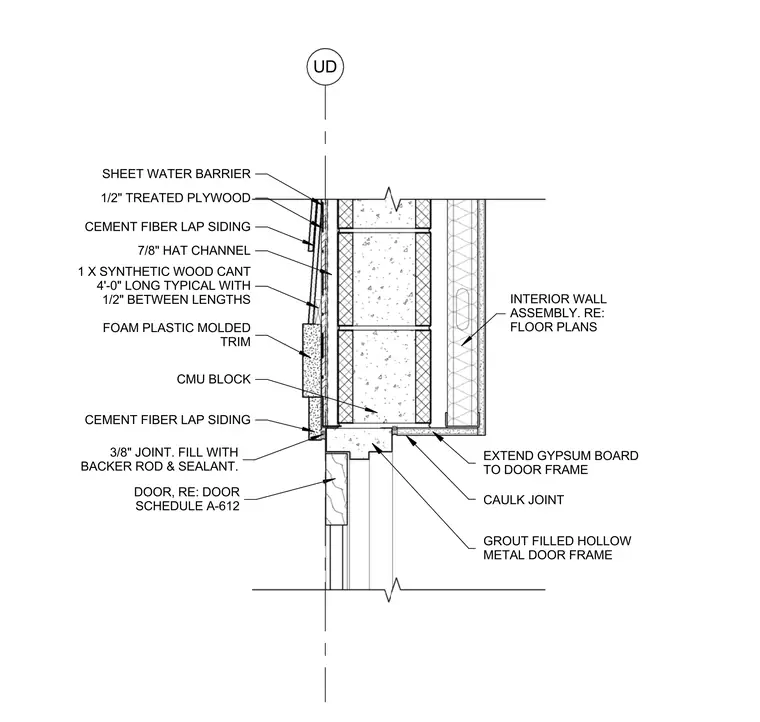

The exterior assembly features cement fiber lap siding installed over a seven-eighths-inch hat channel and one-half-inch treated plywood backed by a sheet water barrier. A one-by synthetic wood cant, four feet long with half-inch gaps between lengths, sits behind the siding alongside a foam plastic molded trim. The CMU block wall transitions at a grout-filled hollow metal door frame with a caulked joint and a three-eighths-inch joint filled with backer rod and sealant. The interior features an interior wall assembly with gypsum board extended to the door frame.
CMU BLOCK DOOR, RE: DOOR SCHEDULE A-612 7/8" HAT CHANNEL CEMENT FIBER LAP SIDING UD 1/2" TREATED PLYWOOD CEMENT FIBER LAP SIDING 1 X SYNTHETIC WOOD CANT 4'-0" LONG TYPICAL WITH 1/2" BETWEEN LENGTHS SHEET WATER BARRIER 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. INTERIOR WALL ASSEMBLY. RE: FLOOR PLANS EXTEND GYPSUM BOARD TO DOOR FRAME CAULK JOINT GROUT FILLED HOLLOW METAL DOOR FRAME FOAM PLASTIC MOLDED TRIM
