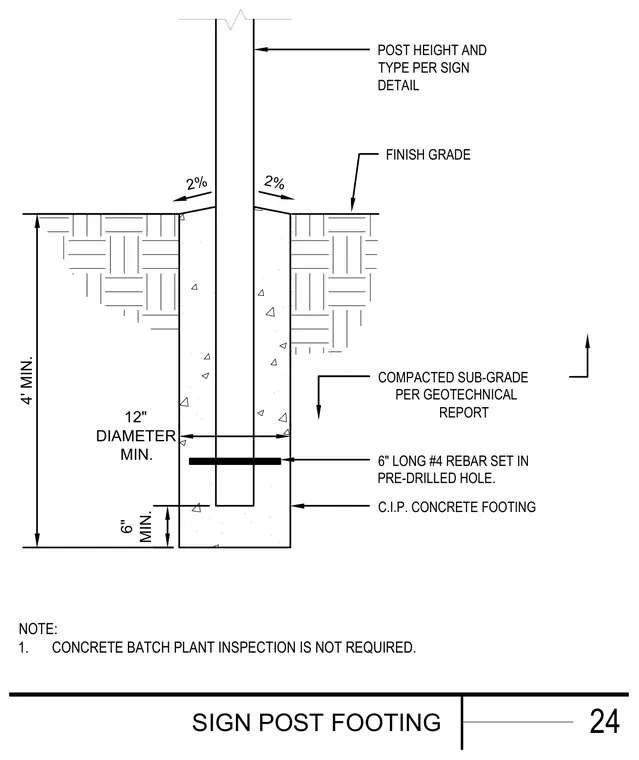

A sign post is embedded into a cast-in-place concrete footing with a minimum diameter of twelve inches and a minimum depth of four feet. The concrete is poured over a compacted sub-grade prepared per the geotechnical report. A six-inch long number four rebar is set in a pre-drilled hole through the post base for anchorage. The finish grade slopes away from the post at two percent.
SIGN POST FOOTING COMPACTED SUB-GRADE PER GEOTECHNICAL REPORT 4' MIN. 12" DIAMETER MIN. 6" MIN. C.I.P. CONCRETE FOOTING FINISH GRADE POST HEIGHT AND TYPE PER SIGN DETAIL 6" LONG #4 REBAR SET IN PRE-DRILLED HOLE. 2% 2% NOTE: 1. CONCRETE BATCH PLANT INSPECTION IS NOT REQUIRED. 24
