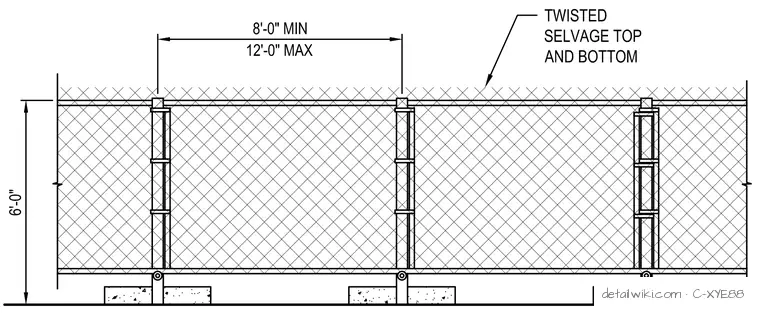

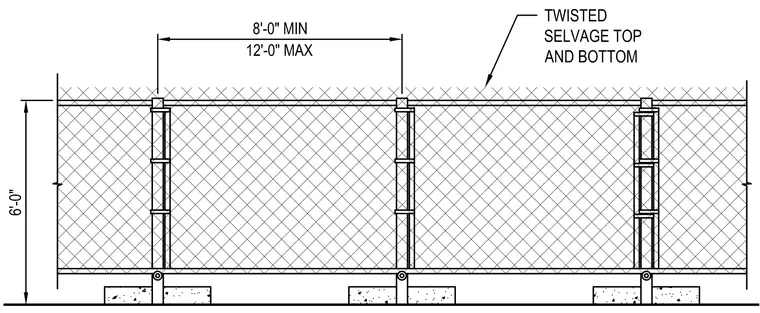

This elevation shows a six-foot high temporary chain link construction fence supported by individual concrete base blocks. The fence posts are spaced at a minimum of eight feet and a maximum of twelve feet on center. The chain link fabric features a twisted selvage at both the top and bottom edges for safety and structural integrity.
